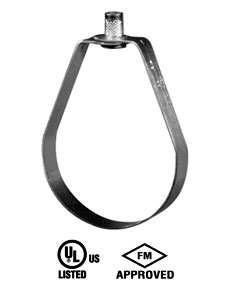

Soportes

Variedad de Productos
Size Range: 1/2" througt 8".
Material: Carbon steel.
Finish: Galvanized.
Service: Recommended for suspension of non-insulated stationary pipe line.
Maximum Temperature: 650º F.
Approvals: Complies whith Federal Specification A--1192A (Type 10).
WW-H-171-E (Type 10), ANSI/MSS SP-69 and MSS SP-58 (Type).
UL Listed and FM Approved (Size 3/4" - 8").

Features:
  • Threads are countersunk so that they cannot become burred or damaged.
  • Knurled swivel nut provides vertical adjustment after piping is in place.
  • Captured swivel nut in the 1/2! through 6" size. The capture is permanent inthe bottom portion of the hanger to be opened during installation if desired, but not allowing the nut to fall completely out.
Ordering: Specify size, figure number and name.
Note: The acceptability of galvanized coatings at temperatures above 450ºF is at the discretion of the end user.
Metric nut available upon request. Non-captured nut also avaiable upon request.

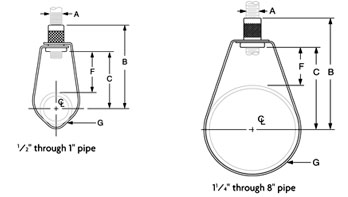

FIG. 69: LOADS (LBS) - WEIGHT (LBS) - DIMENSIONS (IN)
Pipe Size Max Load Weight Rod Size A B C F G
Width
1/2 300 0.10 3/8 2 7/8 2 1 9/16 5/8
3/4 300 0.10 3/8 2 3/4 1 7/8 1 5/16 5/8
1 300 0.10 3/8 2 9/16 1 11/16 1 5/8
1 1/4 300 0.10 3/8 2 5/8 1 3/4 7/8 5/8
1 1/2 300 0.10 3/8 2 3/4 1 7/8 7/8 5/8
2 300 0.11 3/8 3 1/4 2 3/8 1 1/8 5/8
2 1/2 525 0.20 3/8 4 2 3/4 1 5/16 3/4
3 525 0.20 3/8 3 13/16 2 15/16 1 3/16 3/4
4 650 0.30 3/8 4 11/16 3 13/16 1 9/14 3/4
5 1000 0.54 1/2 5 5/16 4 3/8 1 9/14 3/4
6 1000 0.65 1/2 6 11/16 5 9/16 2 1/4 3/4
8 1000 1.00 1/2 8 7 2 11/16 1
- Note: Reflects changes in rod diameter from previously published data per recent revision is MSS-SP-58 & 69.
